Vibration Control Mounts, Rubber Mounts & Engineered Solutions India

Anti Vibration Mounts for Every Industry — India

AVIP Rubber India supplies vibration control solutions to a wide range of industries across the country. From standby power generation in Bangalore to marine propulsion in Mumbai, our mounts are engineered to solve real vibration problems in demanding environments.

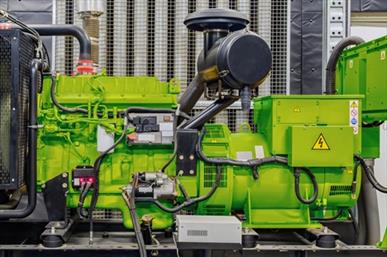

Power Generation & Generator Sets:  Generator sets running at 1,500 RPM are one of the most common sources of structure-borne noise and vibration in Indian buildings and industrial sites. Our anti vibration rubber mounts — including bobbin mounts, captive mounts, and flanged mounts — isolate generator vibration before it reaches floors, walls, and connected structures. We support generator loads from 5 kVA to multi-MW installations.

Marine & Offshore: Our marine engine mounts are purpose-built for the corrosive, high-vibration environments of vessels, offshore platforms, and port infrastructure. Available in stainless steel (AISI 304 and AISI 316) for saltwater and chemical resistance, our marine mounts are Lloyd’s Register approved and cover engine sizes from small auxiliary units to large marine diesel propulsion systems.

Construction, Mining & Earth Moving: Heavy plant — excavators, road rollers, drilling rigs, compactors — generates intense vibration and shock that can damage cab components, sensors, and structural joints. AVIP Rubber India supplies cone mounts, captive transit mounts, compactor mounts, and heavy-duty cab mounts that absorb these forces and protect both operator and machine.

Industrial Manufacturing & HVAC: CNC machines, compressors, fans, blowers, pumps, and HVAC plant all generate vibration that can affect product quality, reduce equipment life, and disturb neighbouring processes. Our machinery mounts, spring mounts, acoustic hangers, and levelling feet provide effective isolation across all frequencies, with load ratings from sub-kilogram instruments up to 30 tonnes per mount.

Defence & Aerospace:  Vibration-sensitive defence electronics, avionics, navigation systems, and military vehicle components require the highest levels of shock and vibration isolation. AVIP Rubber India supplies avionics mounts, wire rope isolators, cup shock mounts, and captive transit mounts that meet the demanding performance and environmental requirements of defence applications.

Automotive & Commercial Vehicles: Engine mounts, cab mounts, suspension bushes, and multi-directional mounts for trucks, buses, agricultural vehicles, and off-highway plant — designed to improve operator comfort, reduce cab noise, and extend component life in high-duty-cycle applications.

Types of Anti Vibration Mounts — Which One Do You Need?

Choosing the right type of anti vibration mount is as important as choosing the right size. Different mount designs isolate vibration in different ways, and each is best suited to specific load directions, frequency ranges, and application environments. Here is a plain-language guide to the main types available from AVIP Rubber India.

Rubber Bobbin Mounts The most widely used anti vibration mount in industrial applications. A central rubber element is bonded between two metal inserts with threaded studs, allowing the mount to carry load in compression and resist shear forces in all horizontal directions. Ideal for generators, compressors, motors, fans, and control panels. Available in male-male, male-female, female-female, waisted, and hexagon configurations across a wide range of load ratings.

Captive Transit Mounts Designed for multi-directional isolation — compression, tension, and shear simultaneously. The “captive” design means the rubber remains constrained, preventing overtravel and providing consistent performance across all six axes. Capable of achieving up to 95% vibration reduction, and supporting loads of up to 5,000 kg, captive mounts are the preferred choice for sensitive electronics, defence equipment, and machinery transported in vehicles.

Cone Mounts Cone-shaped rubber mounts with flanged metal bases and top fittings, designed to carry high loads in compression while providing multi-directional flexibility. The conical geometry gives progressive stiffness — softer at small deflections, stiffer under high load — making cone mounts excellent for vehicle cabs, off-highway plant, and industrial machinery where both static load and dynamic shock must be managed.

Marine Engine Mounts Purpose-designed for the combined static and dynamic loading of marine propulsion systems, with stainless steel hardware for corrosion resistance. Marine mounts must carry the full engine weight in static compression while absorbing torsional vibration from the drivetrain and resisting shock from vessel motion. AVIP Rubber India stocks small, medium, large, and jumbo marine mounts, with height adjuster options.

Hydro Mounts Hydraulic mounts combine a rubber element with a fluid-filled chamber to deliver superior damping at low frequencies — typically those generated by slow-running engines or machines where rubber mounts alone would provide insufficient damping. Hydro mounts are common in passenger vehicle and commercial vehicle engine mounting applications, and in precision manufacturing where low-frequency isolation is critical.

Spring Mounts Steel coil spring mounts provide very low natural frequencies (typically 2–5 Hz), achieving high isolation efficiency at low excitation frequencies where rubber mounts are less effective. Available in enclosed, open, and stainless steel variants, spring mounts are ideal for slow-speed fans, HVAC plant, and buildings requiring acoustic isolation of mechanical services.

Shock Mounts Specifically engineered to absorb high-energy, short-duration impact loads — as distinct from the sustained, periodic vibration that rubber mounts handle. Shock mounts combine rubber or wire rope elements with a controlled-deflection housing to limit peak transmitted forces. Used in defence electronics, avionics, military vehicles, and industrial environments where equipment must survive drop, blast, or impact events.

Custom Rubber Mouldings When no standard mount matches your application, our engineering team designs and manufactures bespoke rubber components — from couplings and seals to donut springs and silicone hoses — to your exact drawing or sample.

Not sure which type you need? Call us on +91 99007 68487 or email mail@aviprubber.in — our engineers will recommend the right mount for your application at no charge.

How to Choose the Right Anti Vibration Mount — A Practical Guide

Selecting the correct anti vibration mount requires more than just matching a thread size. The wrong choice — even if it physically fits — can result in poor isolation, premature rubber failure, or excessive deflection that damages nearby components. Here are the four key factors our engineers consider in every application.

1. Know Your Load Every mount must carry the static weight of the equipment above it. Divide the total machine weight by the number of mounting points to find the load per mount. Most standard mounts have a recommended working load range — operating at the centre of this range typically gives the best isolation performance.

2. Know Your Frequency Vibration isolation only works when the mount’s natural frequency (determined by its stiffness and the supported load) is significantly below the disturbing frequency — the speed at which the machine generates vibration. As a rule of thumb, effective isolation begins at around 1.4 times the natural frequency, and useful isolation (above 50%) begins at around 1.7 times. For a diesel generator running at 1,500 RPM (25 Hz), a mount natural frequency of 8–12 Hz typically delivers good performance.

3. Know Your Environment Natural rubber performs well in most industrial environments but degrades in the presence of petroleum-based oils, ozone, and UV exposure. If your application involves oil or fuel contamination, specify Neoprene or Nitrile rubber. For offshore or coastal installations, specify stainless steel hardware rather than zinc-plated steel.

4. Know Your Direction of Loading Some mounts (such as rubber bobbins) are designed primarily for compression loading with limited tension and shear capacity. Others (such as captive mounts and cone mounts) are multi-directional by design. If your equipment can rock, pitch, or experience tension on its mounts — for example, during starting or stopping — specify a mount rated for multi-directional loading.

Need help running the numbers? Our engineering team offers free application guidance. Provide us with your machine weight, speed, and mounting geometry and we will recommend the correct mount specification for your application.

UK Engineering Excellence, India Pricing & Delivery

AVIP Rubber India is a wholly owned subsidiary of AV Industrial Products Ltd., one of the United Kingdom’s leading manufacturers of anti vibration mounts and rubber engineering products with over 50 years of continuous operation.

This means every product we supply in India carries the benefit of UK engineering standards, rigorous quality testing, and a product development programme that serves demanding global markets including defence, offshore energy, and marine — sectors where vibration mount failure is simply not acceptable.

What this means for Indian buyers:

Our mounts are manufactured and tested to ISO quality standards, approved by Lloyd’s Register, and fully RoHS compliant. We do not source from the cheapest available manufacturer — we supply products that are designed to perform and built to last, at competitive India-market pricing with next-day dispatch available across the country.

When you contact AVIP Rubber India for technical advice, you are speaking with engineers who have access to 50+ years of field experience data, in-house testing facilities, and advanced simulation tools. This is not available from a catalogue reseller — it is the level of support you get from a specialist manufacturer.

Anti Vibration Mounts Supplier — Bangalore & Across India

AVIP Rubber India Pvt. Ltd. is located in Bangalore, Karnataka, and serves customers across all major industrial centres in India. Whether you are an OEM manufacturer in Pune, a power plant operator in Gujarat, a marine engineer in Mumbai, or a defence contractor in Chennai — we can supply the right anti vibration mounts with expert technical support and fast delivery.

Our Bangalore facility is staffed by vibration engineering specialists available Monday to Friday, 8:30 AM to 5:00 PM. For urgent technical queries or immediate stock availability, call us on +91 99007 68487.

We regularly supply to customers in:

Bangalore | Mumbai | Delhi | Chennai | Hyderabad | Pune | Ahmedabad | Kolkata | Coimbatore | Kochi | Surat | Nagpur | Jaipur | Indore | Bhopal | Visakhapatnam | Mangalore | Mysore | Hubli | Goa | and all other major Indian cities and industrial zones.

Industries currently served in Karnataka and South India:

Aerospace and defence manufacturers in Bangalore’s aerospace corridor | IT and data centre operators requiring generator isolation | HVAC and building services contractors | Marine and shipbuilding companies on the west coast | Agricultural equipment manufacturers | Food and beverage processing plant operators | Pharmaceutical manufacturing facilities.
